SET series single screw extrusion granulator
Detailed Description
Overview:
In the dispersion where the solid powder and liquid coexist and are
based on a solid phase, the dispersion is self-adhesive (or with an
external binder) and forced through (such as extrusion, gravity,
centrifugal force, mechanical force, airflow) Impetus, etc.) The basic
particles of the solid powder adhere to each other and increase. And
form a certain shape and size of uniform, concentrated particles. The
wet granulation equipment consists mainly of equipment for mixing
(kneading), granulation, drying and auxiliary systems. After the powder
is mixed (kneaded), it enters a granulator to form a moisture-containing
product having a desired particle size, and is dried to obtain a
granular product, thereby achieving the purpose of granulation.

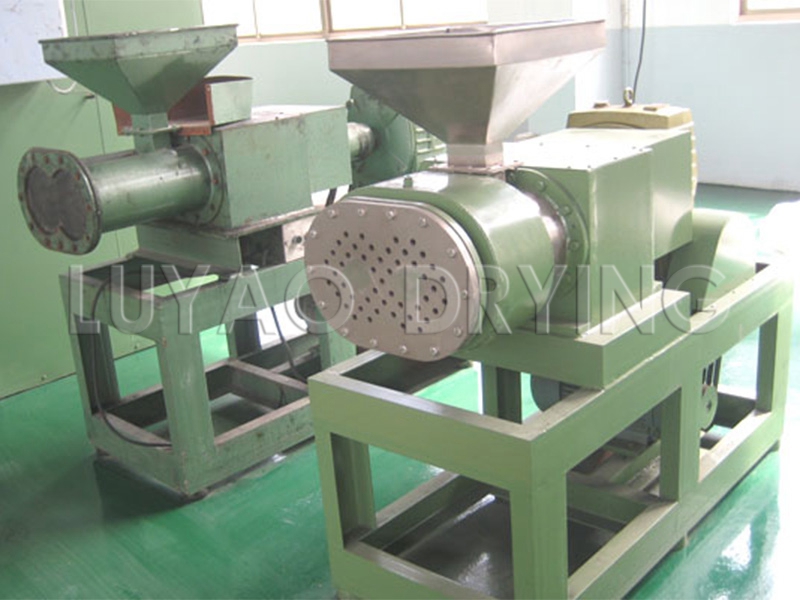

SET type single screw extruding granulator is divided into the front
discharge type and side discharge type. The front discharge type
granulation diameter is generally selected between 1.5-12mm, and the
side discharge type granulation diameter is generally between 0.7-2.0.
The shape of the pellets is selected as a cylinder, and the granulation
rate is ≥ 95%. The discharge port is provided with a device for cutting
off particles. After the strips are dried, they naturally become a
section of granules. A water cooling device is provided at the front end
of the equipment to reduce the temperature in the tubes. Material
speed.
Application range:
Widely applicable to products that require granulation in rubber
additives, food additives, plastic additives, powdered activated carbon,
catalysts, feed, pesticides, dyes, pigments, daily chemical,
pharmaceuticals and other industries.
The main advantages:
Because the pulverulent material finishes the granulation process in
the wet state, the operating conditions of granulation and subsequent
processes (such as drying, packaging, etc.) are greatly
improved. Generally, it can reduce dust on site by more than
90%. Through granulation, the phenomenon of agglomeration, bridging, and
pulsation, which are prone to occur in powder products, can be avoided,
and secondary pollution brought about by the use of the powder during
the use process can be avoided, and the physical properties of the
product can be greatly improved. Under normal circumstances, the bulk
density of granulated products has been greatly improved, thus saving
space for transportation, storage, and packaging. For multi-component
compounding and compounding products, granulation can avoid segregation
of components and thus truly guarantee the quality of composite
products.
Technical Parameters:
model | Screw diameter | Motor power [kw] | Speed [rdivm] | Dimension L*D*H[mm] | Equipment weight [kg] |
SET-100 | 100 | 7.5 | 11-110 | 1800*500*1000 | 810 |
SET-140 | 140 | 15 | 11-110 | 2000*800*1430 | 1,000 |
SET-180 | 180 | 15 | 11-110 | 3000*950*1350 | 2000 |
