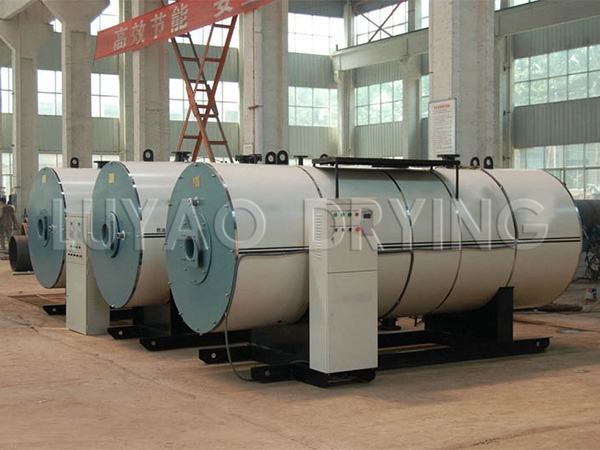

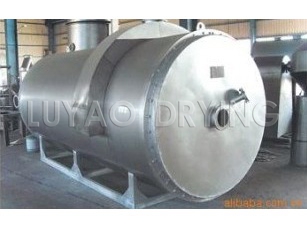

RLY series fuel, gas hot blast stove
Detailed Description
Gas and oil hot air stoves are the ideal hot air equipment in the
fields of drying, reaction, calcining and heating. They can be used in
combination with various drying equipments .
They can provide high clean hot air with different temperatures for
drying systems, and can burn natural gas, city gas, CBM, gas, gas and
light diesel, bio-oil, residual/heavy oil.
Due to the relatively clean hot flue gas produced by direct combustion
of light oil and natural gas, in industrial production, a direct fired
type is usually used, ie direct hot flue gas generated from fuel or gas
is directly used as a heat medium.
Equipment Composition The
direct-fired gas-fired, oil-fired hot air furnace mainly consists of a
valve assembly, a burner, a combustion chamber, a secondary air
distribution system, and a control system.
How it works The
??
fuel burns through the burner and produces high-temperature gas. The
heat of the high-temperature gas is transmitted to the heated air by
means of a hot-air stove with enhanced heat exchange measures. After the
high-temperature gas is emitted, the temperature is lowered to 250° C.
and discharged to the atmosphere. The heated air is forced into the hot
blast stove through the optional blower. When the heat is absorbed, the
temperature rises to the rated value and is sent from the hot air
outlet. When the hot air temperature reaches the upper limit of the
rated temperature, the burner will automatically stop burning or
automatically switch to a small flame. When the temperature of the hot
air drops below the rated minimum temperature, the burner will be
re-ignited or burned. The temperature rise can be adjusted by adjusting
the opening of the intake valve.
Product Features
1. Clean air and high thermal efficiency. Auxiliary equipment less, low investment costs, good operating environment;
2, adjustable hot air temperature, continuous heating air temperature stability;
3, easy to operate, manual / automatic control;
4, with automatic ignition, load regulation and flame detection, alarm Features.
Technical specifications
| model | Burner model | Fuel quantity kg/h | Heat supply 104kcal/h | Dimensions L×W×Hmm | Hot air outlet L×Wmm | Total weight kg |
| RLY1 | RIELLO.G3/DL3FS | 1.3-1.6 | 1 | 1200×1200×1600 | Φ200 | 460 |
| RLY4 | RIELLO.G10/DL10FS | 5-6.5 | 4 | 1700×1300×1600 | Φ250 | 850 |
| RLY10 | RIELLO.G20/DL23FS | 13-16 | 10 | 2300×1568×1870 | Φ300 | 2200 |
| RLY20 | RIELLO 1G/DL34FS | 26-32 | 20 | 2800×1568×1870 | Φ400 | 2670 |
| RLY30 | RL50/DL55FT | 39-48 | 30 | 3400×1568×1870 | Φ450 | 3060 |
| RLY40 | RL70/DL75FT | 52-64 | 40 | 4440×1768×2070 | Φ550 | 5600 |
| RLY60 | RL100/DL100FT | 78-96 | 60 | 5140×1868×2070 | Φ600 | 8460 |
| RLY100 | PRESS 4G/DL 120FT | 130-140 | 100 | 6440×2480×2300 | 550×600 | 12800 |
| RLY160 | P300/DL250FT | 200-270 | 160 | 7470×2920×3480 | 750×900 | 15780 |
| RLY200 | P300/DL300FT | 260-300 | 200 | 8175×2920×3480 | 750×900 | 18500 |
| RLY360 | G1510 | 480-620 | 360 | 9300×2920×3480 | 21000 |
