Product

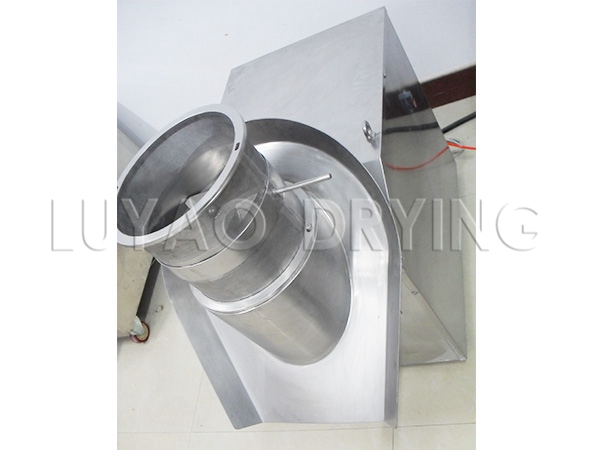

XZL series rotary granulator
Profile：ZLB rotary granulator is mainly used in pharmaceutical, food, granules, chemicals, solid beverages and other industries, the materials will be mixed into the required particles, especially for high viscosity materials. All parts of the machine that come in contact with the material are made of stainless steel, which is beautiful in appearance, reasonable in structure, high in granulation molding rate, and beautiful in appearance. It automatically discharges material, prevents particles from being damaged due to artificial discharge, and is suitable for flowing operations.
Detailed Description
Range of application
??
This machine is used in pharmaceutical, food, granules, chemical
industry, solid beverages and other industries. The material to be
blended is made into the required granules, especially for materials
with higher viscosity.
Performance characteristics
??
All parts of the machine contacted with the material are made of
stainless steel, beautiful appearance, reasonable structure, high
granulation molding rate, beautiful particles, automatic discharge, to
avoid damage caused by artificial discharge of particles, and suitable
for flow operation.
Technical specifications
| Cutter size (mm) | 250 | 300B | 300D |
| Particle diameter (mm) | Φ2-2.2 (according to user's needs) | Φ1.2-3 (according to user needs) | 0.5-6 (according to user needs) |
| Overall size (mm) | 700×540×1300 | 880×640×1300 | 1300×800×1200 |
| Motor power (kw) | 3 | 4 | 7.5-6 |
| Weight (kg) | 350 | 400 | 780 |
Production capacity (kg/h) | 100-200 | 140-400 | 300-600 |
Note: Due to material differences, the output in the table is for reference only
