Product

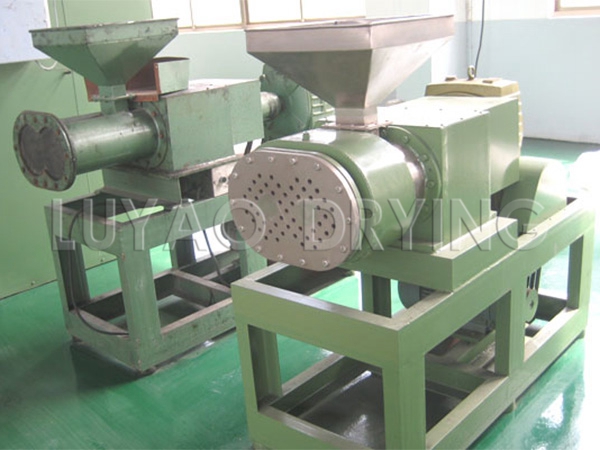

SET twin screw extrusion granulator
Detailed Description
The main purpose: ??
used in
pharmaceutical, food, cosmetic, rubber additives, dyes, catalysts and
other fields. Used as powder wet extrusion granulation.
Working principle: The ??
screw
extrusion granulator is twin-screw. Its extrusion form includes two
types: front extrusion and side extrusion. It is composed of driving,
deceleration, transmission box and main machine. It is added to the wet
powdery material in the main machine. It is transported and compacted
under the action of a specially designed screw element. The process of
unbalanced pressure during opening pressure is sent to the granulator
head. It is then extruded out of the formwork to form pellets of the
same granularity, thus achieving the purpose of granulation. Since the
powdered material is extruded in the wet state to complete the
granulation process, subsequent operations (eg, drying, coating, etc.)
and operating conditions are greatly improved. It can generally reduce
the amount of dust on site by more than 90%.
Technical Parameters:
|
model |
Screw diameter |
Motor power [kw] |
Speed [rdivm] |
Dimension L*D*H[mm] |
Equipment weight [kg] |
|
SET-100 |
100 |
7.5 |
11-110 |
1800*500*1000 |
810 |
|
SET-140 |
140 |
15 |
11-110 |
2000*800*1430 |
1,000 |
|
SET-180 |
180 |
15 |
11-110 |
3000*950*1350 |
2000 |
